47 Inch Outdoor Application Lowest Surface Resistance Touch Foil Screen

Brand Name : Master Touch

Model Number : MST-MCW-TFB-47-STA

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000pcs/month

Delivery Time : 5-8days

Packaging Details : 85*14*14cm Paper Tube

Product name : Pcap Touch Foil

Controller : STA

Screen Ratio : 16:9

View Area : 47 inch (customized)

Communication Interface : USB2.0/3.0

Color : Transparent

Lifetime : 9 Years

Touch Technology : Projected Capacitive

Contact Now

47 Inch Outdoor Application Lowest Surface Resistance Touch Foil Screen

1. Product Description

Master Touch touch foils are able to be designed for temporary or semi-permanent mounting to a rear surface of a rigid transparent substrate, for example a single pane shop window. Once the foils are installed and connected to a touch controller and PC they can be operated by touching the outside surface of the single pane window.

2. Technical Datasheet

Part No.: MST-MCW-TFB-47-STA
BOM Code: 1.11.470.02.0000
Project Code: M470B
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STA
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 10mm
Screen Ratio: 16:9
Foil Size: 1063.74*616.32mm
Active Area: 1040.49*585.27mm
Controller Size: 120*53mm
FPC direction: Long side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~20 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8 Windows10(32 / 64 )位)Windows10(32位 / 64 位)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

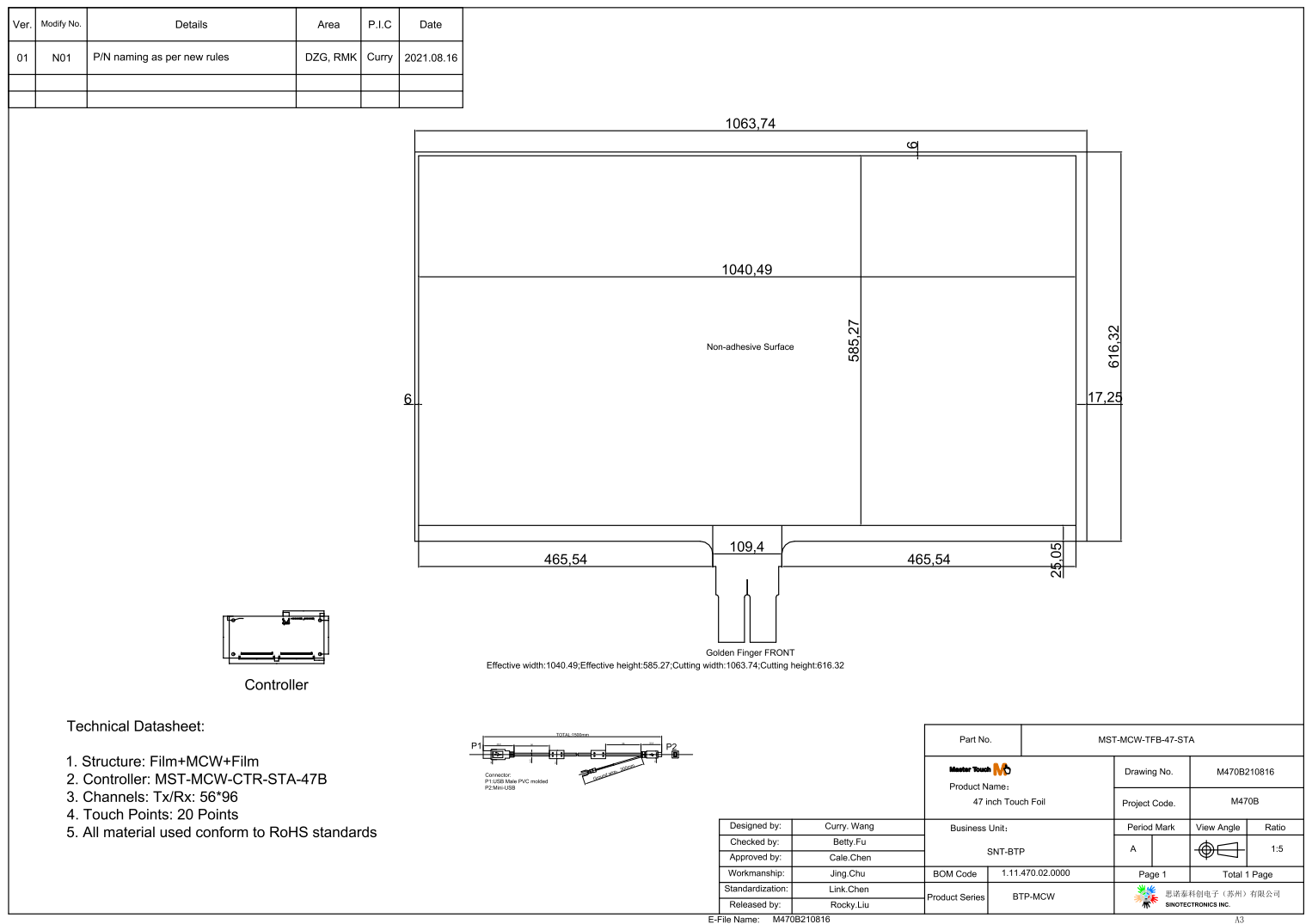

3. Drawing

47 Inch Outdoor Application Lowest Surface Resistance Touch Foil Screen

4. Details

47 Inch Outdoor Application Lowest Surface Resistance Touch Foil Screen

5. Providing Solutions

Touch Foil
Touch Foil with Cover Glass
Touch Foil with Cover Glass and Metal Chassis
High brightness LCD

6. Capacitive Touch Foil Applications

POS Machine

Industrial Control industry

Touch Monitor

Information Kiosks

Gaming, Lottery ect

Multimedia marketing

Banking / Fanancial System

Touch Table

7.Target User

Touch Foil user: Zytronic/Displax distributor/end-user
System Integrator: application for industrial/digital signage/ video wall
Fields connected: Smart City/ Exhibition/ Self-service Kiosks/Educational Equipments
